Reverse Wire Mesh

We Provide Metal Wire Mesh
And Industrial Screening

Our experienced team offers products for both Industrial and commercial. With over 20 years of experience in the industry, we feature extensive knowledge and proficiency in weaving.

PRODUCT DETAIL

Reverse Wire Mesh

Place of Origin: Anping, Hebei, China
Material Grades: Stainless Steel Wire 304, 316 or 316L.
Weaving Types: Reverse Dutch Weave
Product Forms: Rolls, Discs, Panels, Cut-to-Size Pieces
Payment Terms: T/T, D/P
Packaging: Waterproof Paper, Plastic Film, Wooden Case, Pallets

Material: Stainless steel wire (201, 304, 316L)

Weaving Types: Reverse Dutch woven wire mesh, Reverse twill Dutch woven wire mesh

Advantages: High filtration accuracy, strong mechanical strength, pressure resistance, corrosion resistance, stable structure, long service life

Applications: Fine filtration, hydraulic systems, oil and gas filtration, chemical processing, gas separation, precision screening, industrial liquid filtration

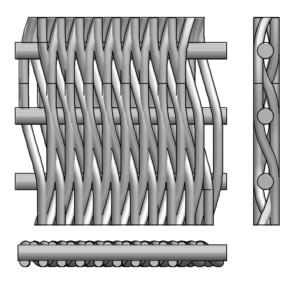

Twill Reverse Dutch Weave

Reverse Dutch Weave

Reverse Dutch Weave Belt
Mesh	Wire Dia.( mm)	Weight (kgs/m2)	Thickness (mm)
72x15	0.45x0.55	4.8	1.6
120x15	0.35x0.54	4.4	1.29
120x16	0.35x0.45	4.485	1.25
132x17	0.32x0.45	4.3	1.24
132x18	0.35x0.45	4.95	1.25
152x24	0.30x0.45	4.635	1.09
152x30	0.27x0.45	3.7	1.09
160x17	0.27x0.45	3.777	1.14
170x17	0.27x0.45	3.9586	1.14
170x18	0.27x0.45	4.0	1.14
180x18	0.27x0.45	4.0	1.15
180x19	0.26x0.45	4.0	1.15
200x40	0.17x0.27	2.17	0.70
240x40	0.15x0.27	2.1	0.64
260x40	0.15x0.25	2.09	0.64
325x40	0.13x0.24	1.95	0.60
130x30	0.2x0.4	2.5	0.75
175x40	0.15x0.3	1.8	0.57
625x125	0.035x0.1	0.55	0.23
625x132	0.035x0.1	0.55	0.23
