Special Material Wire Mesh

We Provide Metal Wire Mesh
And Industrial Screening

Our experienced team offers products for both Industrial and commercial. With over 20 years of experience in the industry, we feature extensive knowledge and proficiency in weaving.

PRODUCT DETAIL

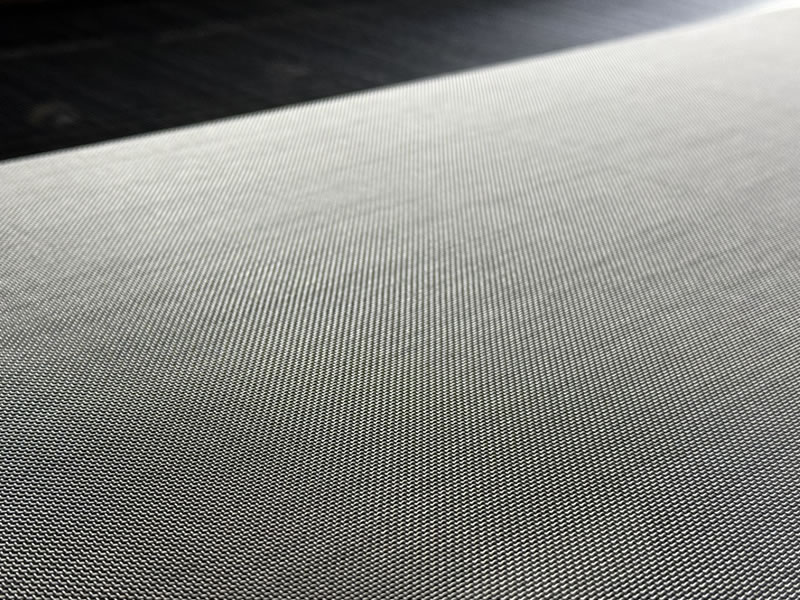

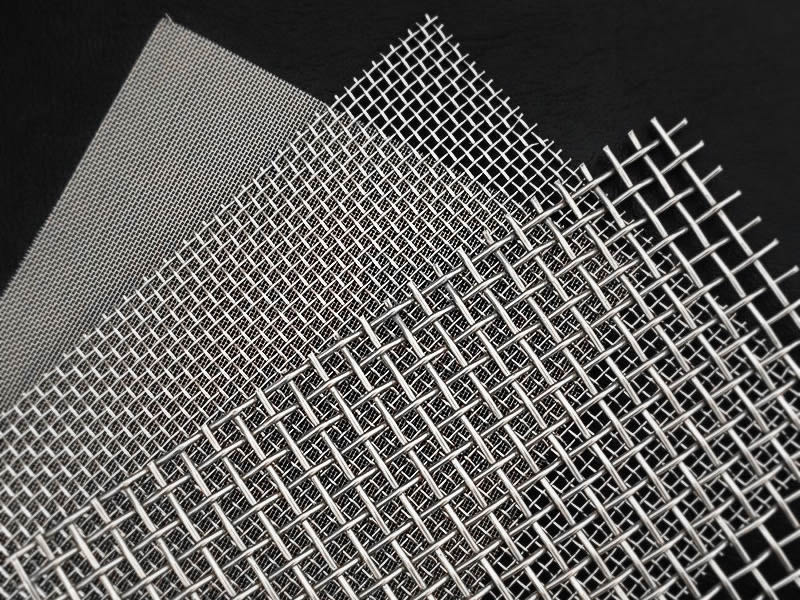

Special Material Wire Mesh

Place of Origin: Anping, Hebei, China
Material Grades: Special Alloy Wire
Weaving Types: Plain Weave, Twill Weave

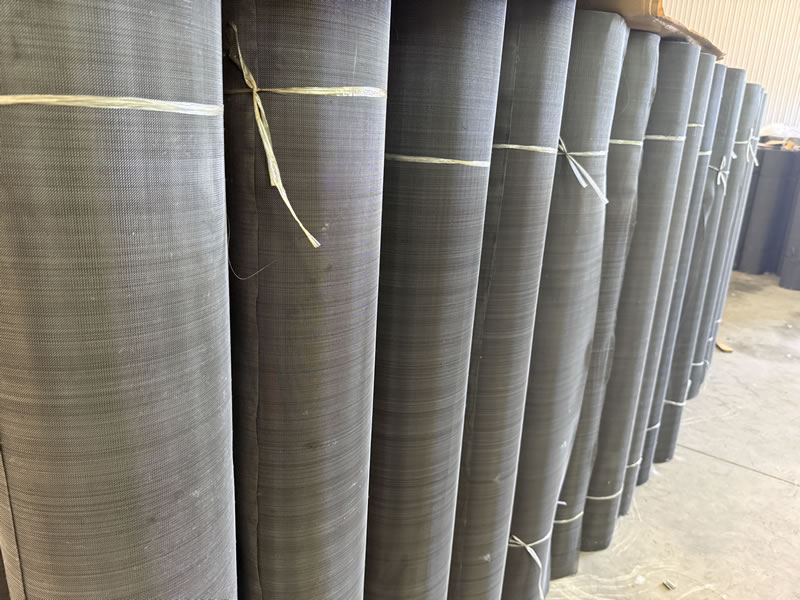

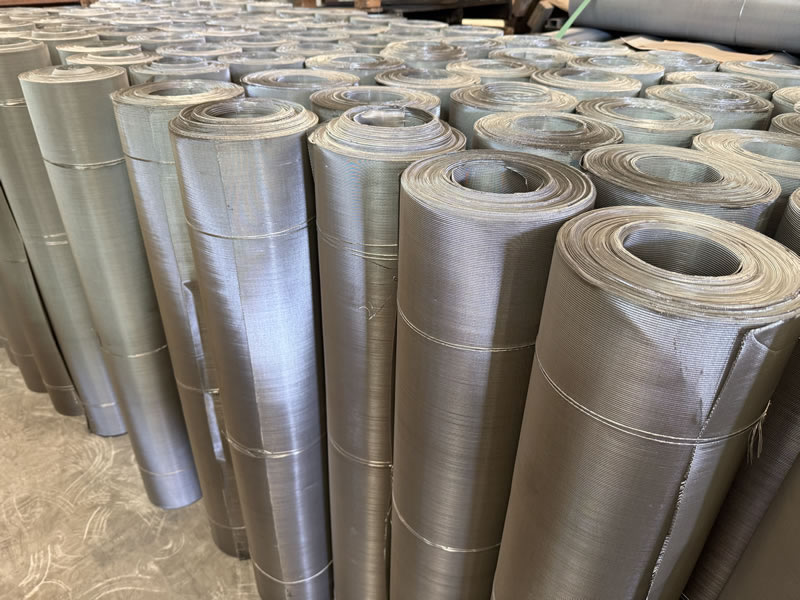

Product Forms: Rolls, Discs, Squares, Cut-to-Size Pieces
Payment Terms: T/T, D/P
Packaging: Waterproof Paper, Plastic Film, Wooden Case, Pallets

Material: Ni wire, Mo wire, Ti wire, Hastelloy C276 wire, Monel 400 wire, Silver wire, Inconel wire, alloy special metal wire

Weaving Type: Plain weave, twill weave, Dutch weave (plain Dutch, twill Dutch), crimped weave

Advantages: High temperature resistance, strong corrosion resistance, chemical stability, high strength, oxidation resistance, long service life.

Applications: Aerospace, chemical processing, petroleum and gas, marine engineering, pharmaceutical industry, power generation, high temperature filtration, precision screening, special industrial environments.

Plain Weave

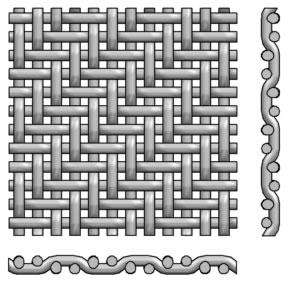

Twill Weave

Material Type	Wire Diameter (mm)	Mesh Range	Aperture (mm)	Temperature Resistance	Corrosion Resistance
Inconel Alloy	0.05 – 1.2	20 – 400 mesh	0.03 – 5.0	Up to 1200°C	High
Hastelloy Alloy	0.05 – 1.0	20 – 400 mesh	0.03 – 5.0	Up to 1100°C	Very high
Monel Alloy	0.05 – 1.2	20 – 400 mesh	0.03 – 5.0	Up to 900°C	High
Titanium Wire Mesh	0.03 – 1.0	20 – 400 mesh	0.03 – 5.0	Up to 600°C	Very high
