Wire Mesh Filter

We Provide Metal Wire Mesh
And Industrial Screening

Our experienced team offers products for both Industrial and commercial. With over 20 years of experience in the industry, we feature extensive knowledge and proficiency in weaving.

PRODUCT DETAIL

Wire Mesh Filter

Place of Origin: Anping, Hebei, China
Material Grades: SS304, SS304L, SS316, 316L
Plain Weave, Twill Weave, Plain Dutch Weave, Twill Dutch Weave
Product Forms: Rolls, Discs, Squares, Cut-to-Size Pieces
Payment Terms: T/T, D/P
Packaging: Waterproof Paper, Plastic Film, Wooden Case, Pallets

Material: Stainless steel wire (304, 304L, 316, 316L), iron, galv etc.

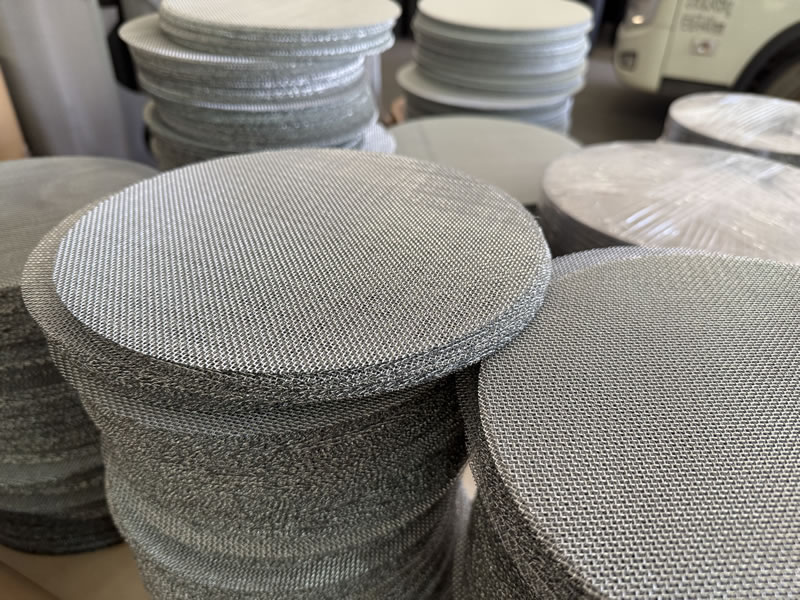

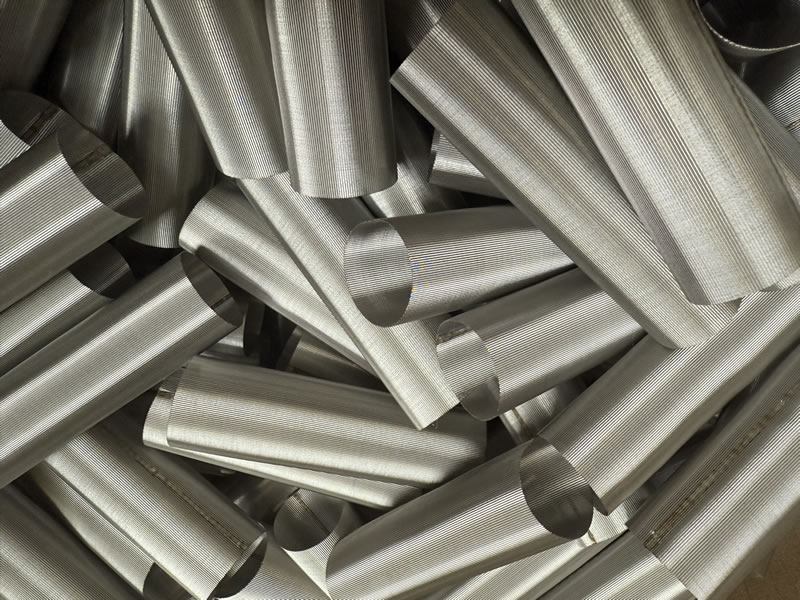

Types: Filter discs, filter cylinders, aluminium ring filters, sus ring filters, multi-layer welded filters, cap filters etc.

Advantages: High filtration precision, pressure resistance, corrosion resistance, stable structure, reusable, heat resistance

Applications: Liquid and gas filtration, oil filtration, chemical industry, pharmaceutical filtration, food and beverage, water treatment, hydraulic systems

Plain Weave

Twill Weave

Stainless Steel Filter Mesh Common Specification

Mesh Count	Wire Diameter (mm)	Aperture (mm)	Filtration Rating (micron)	Material
10 mesh	0.80	1.74	2000	SS304 / SS316
20 mesh	0.40	0.87	1000	SS304 / SS316
30 mesh	0.30	0.55	600	SS304 / SS316
40 mesh	0.25	0.39	400	SS304 / SS316
50 mesh	0.20	0.31	300	SS304 / SS316
60 mesh	0.15	0.27	250	SS304 / SS316
80 mesh	0.12	0.18	180	SS304 / SS316
100 mesh	0.10	0.15	150	SS304 / SS316
120 mesh	0.08	0.12	120	SS304 / SS316
150 mesh	0.06	0.10	100	SS304 / SS316
200 mesh	0.05	0.07	80	SS304 / SS316
250 mesh	0.04	0.06	60	SS304 / SS316
300 mesh	0.035	0.05	50	SS304 / SS316
400 mesh	0.025	0.03	38	SS304 / SS316
500 mesh	0.020	0.025	25	SS304 / SS316

Stainless Steel Dutch Weave Filter Mesh

Mesh Type	Warp Wire (mm)	Weft Wire (mm)	Aperture (mm)	Filtration Rating (micron)	Material
12×64	0.60	0.40	0.20	200	SS304 / SS316
14×88	0.50	0.33	0.15	150	SS304 / SS316
24×110	0.35	0.25	0.10	100	SS304 / SS316
30×150	0.30	0.20	0.08	80	SS304 / SS316
40×200	0.25	0.15	0.06	60	SS304 / SS316
50×250	0.20	0.12	0.05	50	SS304 / SS316
80×400	0.12	0.08	0.03	30	SS304 / SS316
100×500	0.10	0.06	0.025	25	SS304 / SS316
200×1400	0.05	0.03	0.015	15	SS304 / SS316
