Stainless Steel Wire Mesh

We Provide Metal Wire Mesh
And Industrial Screening

Our experienced team offers products for both Industrial and commercial. With over 20 years of experience in the industry, we feature extensive knowledge and proficiency in weaving.

PRODUCT DETAIL

Stainless Steel Wire Mesh

Place of Origin: Anping, Hebei, China
Material Grades: SS201, SS304, SS316
Weaving Types: Plain Weave, Twill Weave, Plain Dutch Weave, Twill Dutch Weave, Twill Reverse Dutch Weave, Crimped Weave

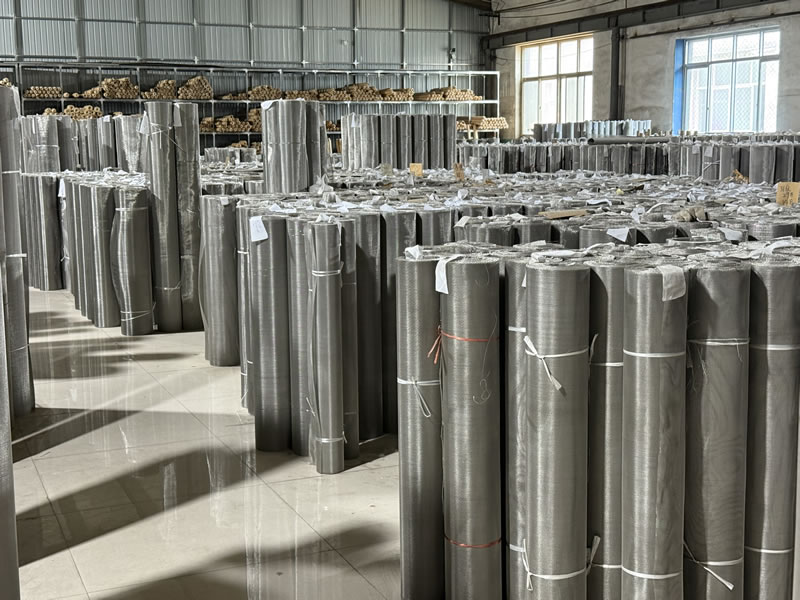

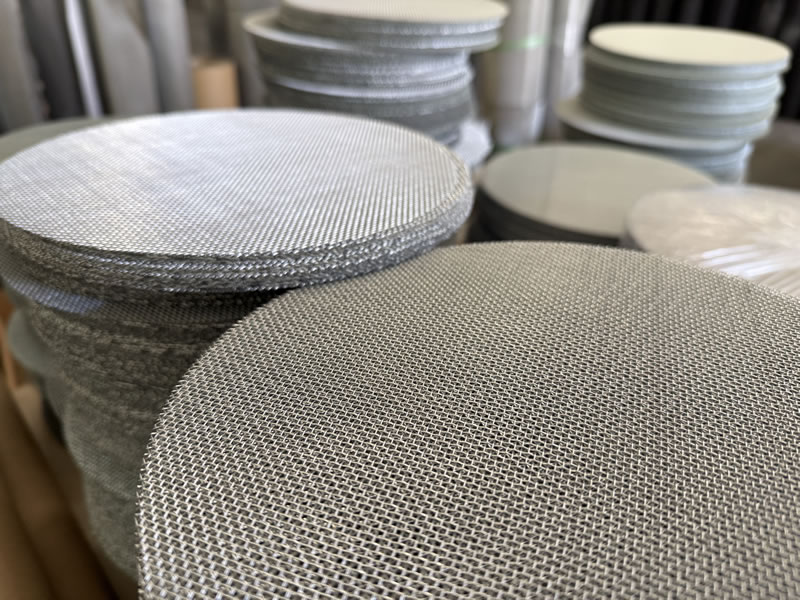

Product Forms: Rolls, Discs, Panels, Cut-to-Size Pieces
Payment Terms: T/T, D/P

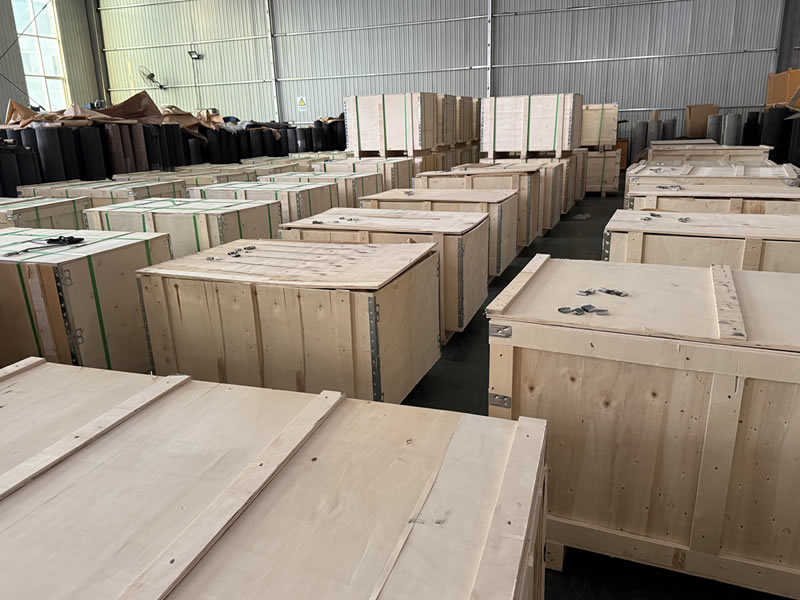

Packaging: Waterproof Paper, Plastic Film, Cartons, Pallets

Material: SS201, SS304, SS316, etc.

Weaving Types: Plain weave, twill weave, plain Dutch weave, twill Dutch weave, reverse twill Dutch weave, crimped weave.

Advantages: Acid and alkali resistance, corrosion resistance, high tensile strength, uniform aperture.

Applications: Sieving and filtration, petroleum mud screen, chemical screening, galvanizing, pickling, food processing, mining and sorting, pharmaceutical filtration, etc.

Plain weave

Twill weave

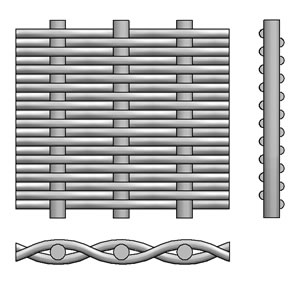

Plain Dutch weave

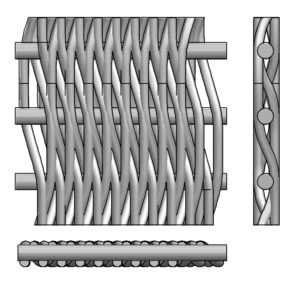

Twill Reverse Dutch weave

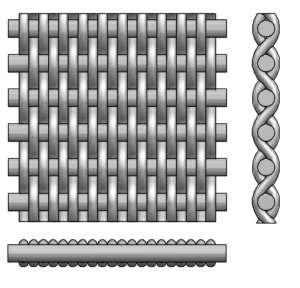

Plain Reverse Dutch weave

PLAIN WEAVE
MESH(INCH)	WIRE DIA.(MM)	APERTURE/OPENING (MM)	MATERIAL(AISI)	OPEN AREA
2	1.800	10.900	304/316	74%
2	1.500	11.200	304/316	78%
3	1.500	6.960	304/316	68%
3	1.200	7.260	304/316	74%
4	1.200	5.150	304/316	66%
4	1.000	5.350	304/316	71%
5	1.000	4.080	304/316	65%
5	0.900	4.180	304/316	68%
6	1.000	3.233	304/316	58%
6	0.800	3.433	304/316	66%
7	0.800	2.828	304/316	61%
7	0.700	2.928	304/316	65%
8	0.800	2.375	304/316	56%
8	0.600	2.575	304/316	66%
10	0.600	1.940	304/316	58%
10	0.550	1.990	304/316	61%
12	0.600	1.516	304/316	51%
12	0.550	1.566	304/316	55%
12	0.500	1.616	304/316	58%
14	0.550	1.262	304/316	49%
14	0.500	1.312	304/316	52%
14	0.450	1.362	304/316	56%
16	0.500	1.088	304/316	47%
16	0.450	1.138	304/316	51%
18	0.500	0.910	304/316	42%
18	0.450	0.960	304/316	46%
18	0.400	1.010	304/316	51%
20	0.500	0.770	304/316	37%
20	0.450	0.820	304/316	42%
20	0.400	0.870	304/316	47%
30	0.350	0.496	304/316	34%
30	0.300	0.548	304/316	42%
30	0.250	0.596	304/316	50%
35	0.300	0.425	304/316	34%
35	0.250	0.475	304/316	43%
35	0.230	0.495	304/316	47%
40	0.250	0.385	304/316	37%
40	0.200	0.435	304/316	47%
40	0.180	0.455	304/316	51%
50	0.220	0.288	304/316	32%
50	0.200	0.308	304/316	37%
50	0.180	0.328	304/316	42%
60	0.190	0.233	304/316	30%
60	0.180	0.243	304/316	33%
60	0.160	0.263	304/316	39%
70	0.140	0.223	304/316	38%
70	0.120	0.243	304/316	45%
80	0.140	0.178	304/316	31%
80	0.120	0.198	304/316	39%
90	0.110	0.172	304/316	37%
90	0.100	0.182	304/316	42%
100	0.110	0.144	304/316	32%
100	0.100	0.154	304/316	37%
120	0.080	0.132	304/316	39%
150	0.063	0.106	304/316	39%
165	0.060	0.094	304/316	37%
180	0.053	0.088	304/316	39%
200	0.053	0.074	304/316	34%
AVAILABLE IN WIDTH: 0.50M-4.00M

TWILL WEAVE
MESH(INCH)	WIRE DIA.(MM)	APERTURE/OPENING (MM)	MATERIAL(AISI)	OPEN AREA
250	0.04	0.061	316	36%
300	0.04	0.045	316	28%
325	0.035	0.038	316	27%
400	0.03	0.034	316	28%
450	0.028	0.028	316	25%
500	0.025	0.026	316	26%
635	0.020	0.020	316	25%
AVAILABLE IN WIDTH: 0.50M-1.50M

DUTCH WEAVE
MESH(INCH)	WIRE DIA.(MM)	MATERIAL(AISI)
8×40	0.75×0.65	304/316
10×60	0.57×0.43	304/316
12×64	0.58×0.40	304/316
14×88	0.50×0.33	304/316
16×80	0.43×0.34	304/316
18×100	0.29×0.26	304/316
20×120	0.26×0.18	304/316
22×150	0.26×0.18	304/316
24×110	0.35×0.25	304/316
24×200	0.18×0.14	304/316
30×150	0.25×0.18	304/316
50×250	0.14×0.11	304/316
50×300	0.14×0.09	304/316
50×500	0.14×0.11	304/316
80×400	0.12×0.07	304/316
80×500	0.10×0.055	304/316
80×700	0.10×0.077	304/316
165×800	0.071×0.04	304/316
165×1400	0.07×0.04	304/316
200×1800	0.05×0.032	304/316
325×2300	0.035×0.025	304/316
400×2800	0.030×0.020	304/316
AVAILABLE IN WIDTH: 0.50M-1.50M
